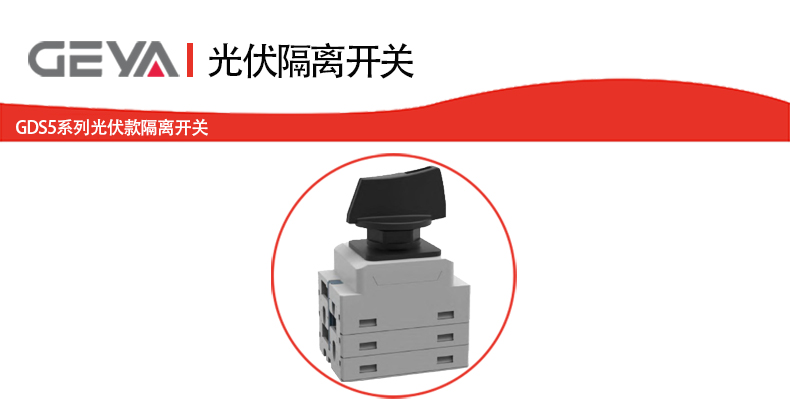

GDS5系列光伏款直流隔離開關

產品介紹：GDS5系列光伏款直流隔離開關開關是一款Non-polarity直流隔離開關，采用模塊化設計，正、反向觸點可供選擇。同時，GDS5系列光伏款直流隔離開關采用動態密封設計，選用密封性強的材料，可保證IP66防護等級。

所屬分類：光伏隔離開關返回上一級

價格：

促銷：

[
                                        {"產品型號": "GDS150-DB32R","Poles": "1P","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "2P","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "2P","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "3P","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "3P","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "4P","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "4P","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "6P","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "6P","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "8P","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "8P","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "4T","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "4T","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "4B","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "4B","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "4S","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "4S","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "3T","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "3T","電壓規格": "1500V"},{"產品型號": "GDS150-DB32R","Poles": "6T","電壓規格": "1000V"},{"產品型號": "GDS150-DB32R","Poles": "6T","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "1P","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "2P","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "2P","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "3P","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "3P","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "4P","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "4P","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "6P","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "6P","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "8P","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "8P","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "4T","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "4T","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "4B","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "4B","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "4S","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "4S","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "3T","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "3T","電壓規格": "1500V"},{"產品型號": "GDS150-DB40R","Poles": "6T","電壓規格": "1000V"},{"產品型號": "GDS150-DB40R","Poles": "6T","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "1P","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "2P","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "2P","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "3P","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "3P","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "4P","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "4P","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "6P","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "6P","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "8P","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "8P","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "4T","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "4T","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "4B","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "4B","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "4S","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "4S","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "3T","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "3T","電壓規格": "1500V"},{"產品型號": "GDS150-DB55R","Poles": "6T","電壓規格": "1000V"},{"產品型號": "GDS150-DB55R","Poles": "6T","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "1P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "2P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "2P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "3P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "3P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "4P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "4P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "6P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "6P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "8P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "8P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "4T","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "4T","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "4B","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "4B","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "4S","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "4S","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "3T","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "3T","電壓規格": "1500V"},{"產品型號": "GDS150H-DB40R","Poles": "6T","電壓規格": "1000V"},{"產品型號": "GDS150H-DB40R","Poles": "6T","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "1P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "2P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "2P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "3P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "3P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "4P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "4P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "6P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "6P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "8P","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "8P","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "4T","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "4T","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "4B","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "4B","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "4S","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "4S","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "3T","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "3T","電壓規格": "1500V"},{"產品型號": "GDS150H-DB50R","Poles": "6T","電壓規格": "1000V"},{"產品型號": "GDS150H-DB50R","Poles": "6T","電壓規格": "1500V"}
                                        ]

產品介紹

咨詢服務熱線：13957717877

產品概述

資料下載

相關產品

相關資訊



GDS5系列光伏直流隔離開關產品特點：

1、本產品屬于Non-polarity直流隔離開關。

2、采用模塊化設計，可選2-10級。

3、正向觸點或反向觸點可選。

4、單孔安裝、面板安裝、配電板、門離合器或外殼可選。

5、動態密封設計和密封性強的材料保證IP66防護等級。

6、DC 1500絕緣電壓設計，通過IECEN60947-3:2009+A1+A2、AS60947.3、UL508、

GB/T14048.3測試，具有TUV、CE、CB、S、UL、CC認證。

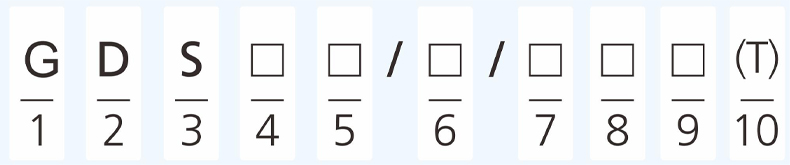

GDS5系列光伏直流隔離開關型號及含義：


序號	名稱	描述
1	品牌	G
2	直流	D
3	隔離開關	S
4	系列	5:系列5（反向觸點） 6:系列6（正觸點）
5	安裝類型	HM：單孔安裝 PM：面板安裝 DB：配電板 DC：門
6	1000V 額定電流	13:13A 20:20A 25:25A 40:40A 50:50A UL 13:13A 20:20A 25:25A 30:30A
7	Pole	2:2P 3:3P 4:4P 6:6P 8:8P 10:10P 2H/3H/4H 4T/4B/4S UL 2:2P 3:3P 4:4P 6:6P 8:8P 10:10P
8	旋鈕外觀	R:可鎖定 Nil:無鎖
9	旋鈕方向	（9D）：9點鐘，OFF 12點鐘，ON 無：12點鐘，OFF 3點鐘，ON
注*PM旋轉按鈕的方向為9點鐘關閉和12點鐘打開，其余旋轉按鈕為12點鐘關閉和3點鐘關閉。HM系列旋轉按鈕具有兩個方向。
如果您有需求，請與我們聯系。
注*安裝方式：6系列：HM、PM（僅帶鎖）、DB、DC、EL、ELA 5系列：HM、PM（僅帶鎖）

GDS5系列光伏直流隔離開關技術參數：

主要參數
型號		A	13	20	25	40	50
額定絕緣電壓（Ui）		V	1500	1500	1500	1500	1500
額定熱電流（lth）		A	32	40	55	55	55
額定沖擊耐受電壓（Uimp）		V	8000
額定短時耐受電流 (1s) Icw		A	780
額定短時閉合能力（lcm）		A	1200
電纜橫截面(incl.jumper)
實心或絞合		mm2	4-16
靈活性		mm2	4-16
柔性（+多芯電纜端）		mm2	4-16
扭矩
擰緊力矩端子螺釘M4。		Nm	1.2-1.8
擰緊力矩單孔安裝螺母M16		Nm	2.0-2.3
擰緊力矩旋鈕螺釘M3		Nm	0.5-0.7
開啟或關閉扭矩		Nm	0.9-1.3
一般參數
旋鈕位置			12點鐘關閉，3點鐘打開（9點鐘關閉，12點鐘打開）
電氣壽命	實際		3000 Cycles
	標準		300 Cycles
機械壽命	實際		10000 Cycles
	標準		10000 Cycles
觸點距離 (per pole)		mm	8
操作溫度		℃	-40 to +85
儲存溫度		℃	-40 to +85
污染程度			3
過電壓類別			Ⅱ
軸和安裝螺母的IP等級			IP66


GDS5系列光伏直流隔離開關技術參數：

圖層面板	電壓/電流（DC-PV1）
2/3/4/6/8/10	600Vdc	800Vdc	1000Vdc	1200Vdc	1500Vdc	Model
	32	26	13	10	5	GDS5(6)XX/13/ZY
	40	30	20	12	6	GDS5(6)XX/20/ZY
	55	45	25	15	8	GDS5(6)XX/25/ZY
	/	50	40	30	20	GDS5(6)XX/40/ZY
	/	55	50	40	30	GDS5(6)XX/50/ZY
4T/B/S	/	/	32	26	13	GDS5(6)XX/13/ZY
	/	/	40	30	20	GDS5(6)XX/20/ZY
	/	/	55	40	30	GDS5(6)XX/25/ZY
	/	/	/	/	45	GDS5(6)XX/40/ZY
	/	/	/	/	50	GDS5(6)XX/50/ZY
3T/6T/9T	/	/	32	23	10	GDS5(6)XX/13/ZY
	/	/	40	30	13	GDS5(6)XX/20/ZY
	/	/	55	40	20	GDS5(6)XX/25/ZY
	/	/	/	45	30	GDS5(6)XX/40/ZY
	/	/	/	50	40	GDS5(6)XX/50/ZY
2H	50	26	13	10	5	GDS5(6)XX/13/ZY
	64	30	20	12	6	GDS5(6)XX/20/ZY
	80	45	25	15	8	GDS5(6)XX/25/ZY
	90	50	40	30	20	GDS5(6)XX/40/ZY
	100	55	50	40	30	GDS5(6)XX/50/ZY
3H	/	50	13	10	5	GDS5(6)XX/13/ZY
	/	64	20	12	6	GDS5(6)XX/20/ZY
	/	80	25	15	8	GDS5(6)XX/25/ZY
	/	90	40	30	20	GDS5(6)XX/40/ZY
	/	100	50	40	30	GDS5(6)XX/50/ZY
4H	/	/	50	10	5	GDS5(6)XX/13/ZY
	/	/	64	12	6	GDS5(6)XX/20/ZY
	/	/	80	15	8	GDS5(6)XX/25/ZY
	/	/	90	30	20	GDS5(6)XX/40/ZY
	/	/	100	40	30	GDS5(6)XX/50/ZY

圖層面板	電壓/電流（DC-PV2）
2/3/4/6/8/10	600Vdc	800Vdc	1000Vdc	1200Vdc	1500Vdc	Model
	13	13	6	4	3	GDS5(6)XX/13/ZY
	20	15	8	6	4	GDS5(6)XX/20/ZY
	25	23	10	8	5	GDS5(6)XX/25/ZY
	40	30	20	15	8	GDS5(6)XX/40/ZY
	50	40	25	18	10	GDS5(6)XX/50/ZY
4T/B/S/3T/6T/9T	/	/	12	/	/	GDS5(6)XX/13/ZY
	/	/	18	/	/	GDS5(6)XX/20/ZY
	/	/	20	/	/	GDS5(6)XX/25/ZY
	/	/	40	/	/	GDS5(6)XX/40/ZY
	/	/	50	/	/	GDS5(6)XX/50/ZY

圖層面板	電壓/電流（UL 508i）
2/3/4/6/8/10	600VDC	800VDC	1000VDC	Mode
	30	30	13	GDS5(6)XX/13/ZY
	30	30	20	GDS5(6)XX/20/Zy
	30	30	25	GDS5(6)XX/25/ZY
	30	30	30	GDS5(6)XX/30/ZY
注意*10P產品需要定制，如果需要，請與我們聯系

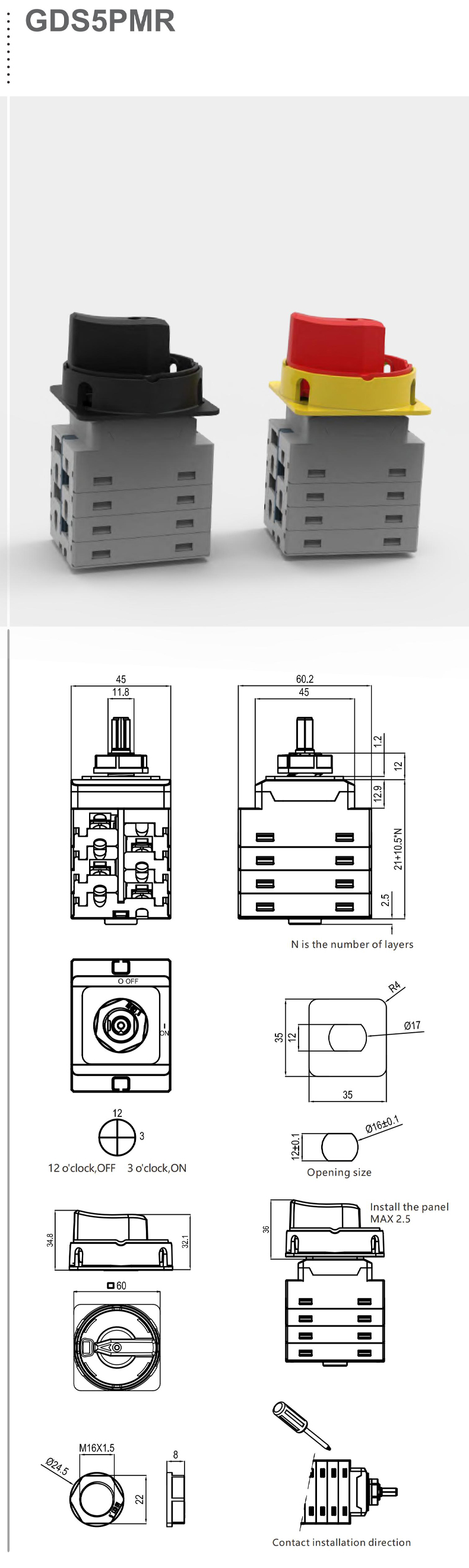

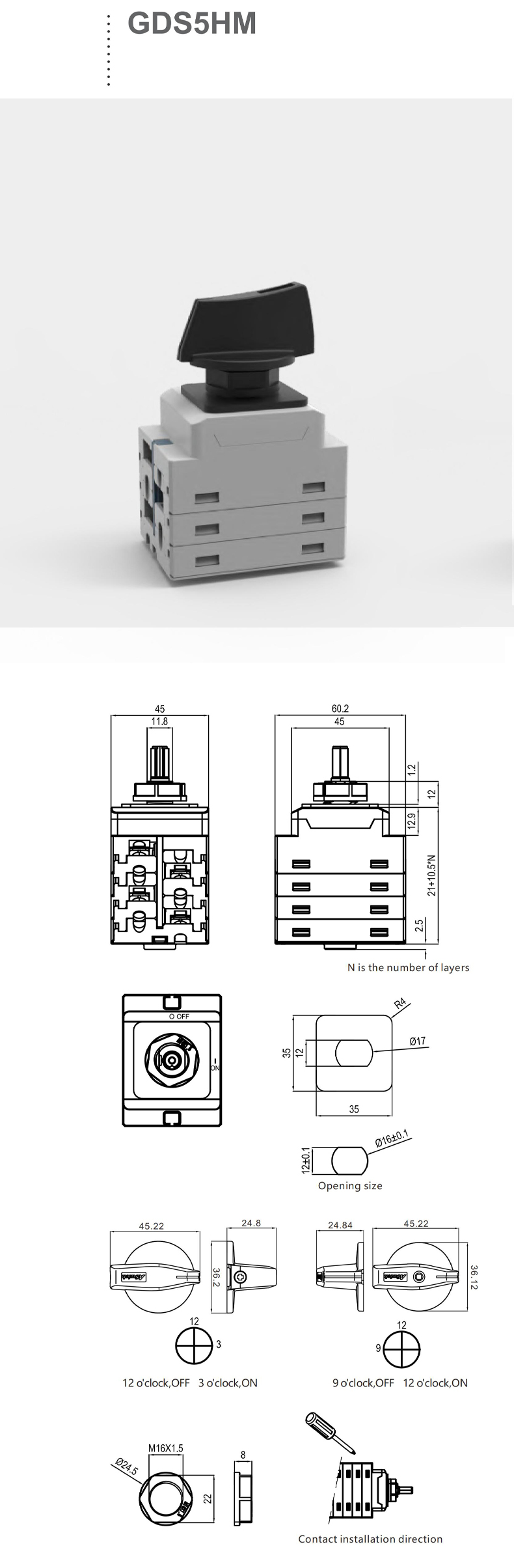

GDS5系列光伏直流隔離開關產品尺寸：

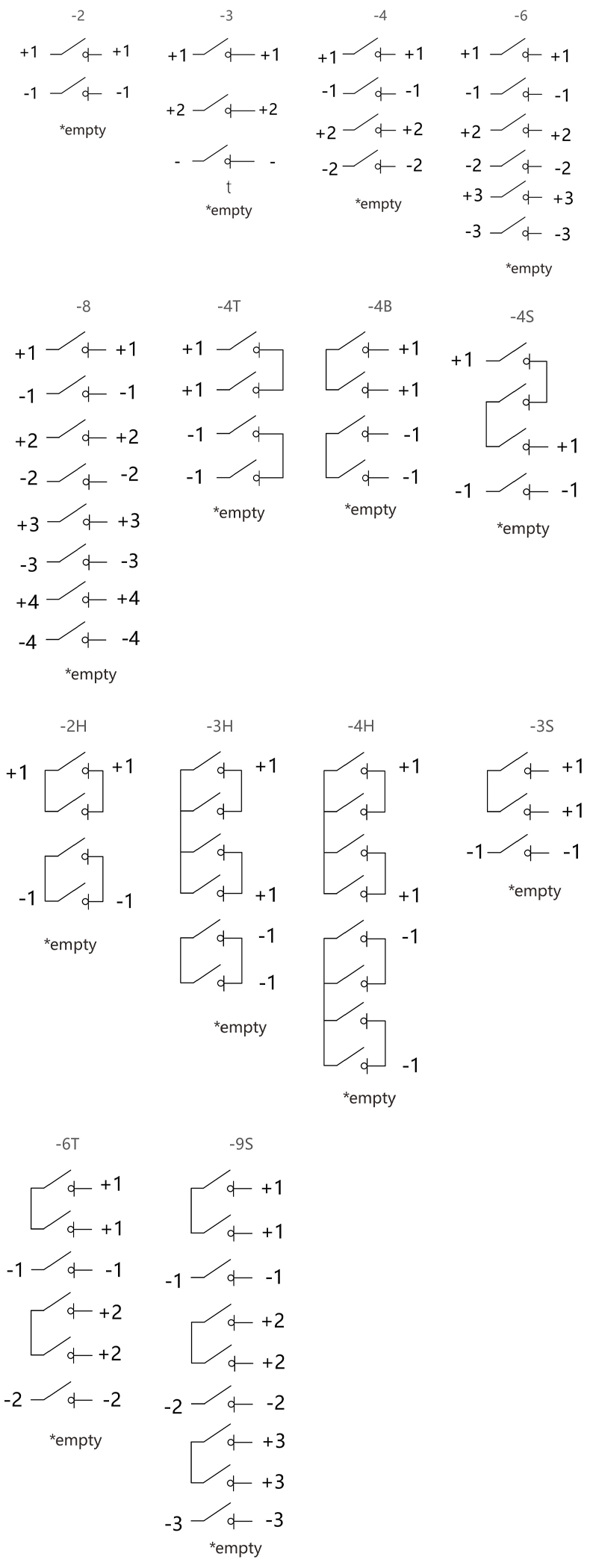

GDS5系列光伏直流隔離開關接線圖：
